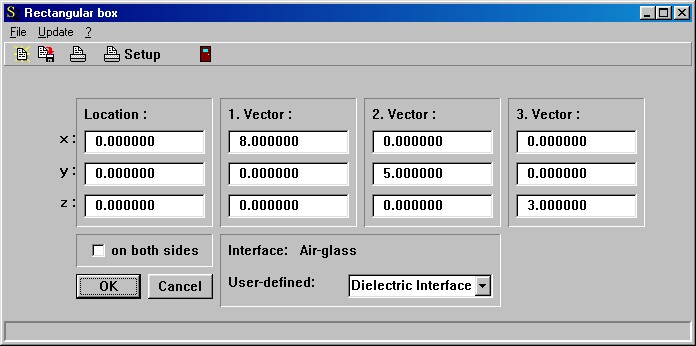

This type of object (select object type Quader) is a rectangular box the geometry of which is defined as follows:



geo_quader_dialog



The parameters have the same meaning as those explained for volume light sources.

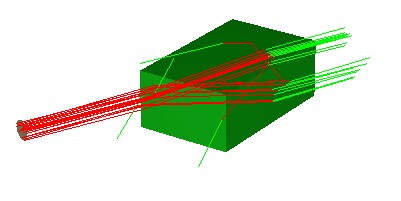

The definition of the interface covering the box is the same as explained for rectangles. All 6 rectangles have the same interface, with the surface normal pointing outward. The picture below shows some rays travelling through a glass brick:

geo_quader2



 Rectangular box
Top  Previous  Next

geo_quader1

This type of object (select object type Quader) is a rectangular box the geometry of which is defined as follows:



geo_quader_dialog



The parameters have the same meaning as those explained for volume light sources.



The definition of the interface covering the box is the same as explained for rectangles. All 6 rectangles have the same interface, with the surface normal pointing outward. The picture below shows some rays travelling through a glass brick:

geo_quader2
