Cone

Navigation:  Geometric objects > Interface objects >

Cone

Previous pageReturn to chapter overviewNext page

Cone objects are similar to open cylinders, with the difference that the radius of the cylinder changes linearly from one end to the other. Cones are defined by setting the two end points and the two radii of the circles at each end. Here is an example:



geo_cone



The cone defined by these settings looks from side like this:

geo_cone2

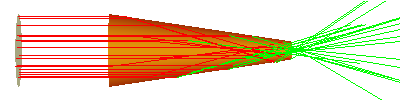

Illuminated by a parallel beam from the left shows the concentrating effect of cones:



geo_cone3
