Navigation:  BREIN modules for glass coating production lines > Bright_eye_traverse.exe

This program analyzes spectra recorded exsitu, i.e. outside the coating line. Here the hardware sees the completed coating. In the case of glass coatings, usually transmittance and reflectance spectra (from both sides of the glass pane) are taken at different positions of the pane.

Bright_eye_traverse.exe analyzes sets of spectra taken at various positions. It permanently scans the specified input folder for new spectra and detects, if all required spectra taken at a certain position are present. It that's the case, the data are processed and the results are stored in a BREIN database folder.

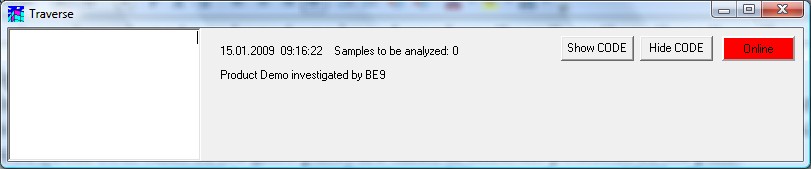

The program works in the background. If shown on the screen, it looks very much like bright_eye_inline.exe:





In most BREIN applications bright_eye_traverse is the most heavily used component, usually analyzing 3 spectra (transmittance and reflectance from both sides) for several positions across the panes. In order to speed up the analysis the program can run several fits in parallel if it is working on a PC with several cores.
