Poly-crystalline silicon layers on silicon oxide

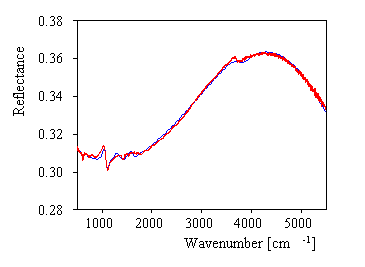

Another semiconductor example demonstrates the investigation of quite thin films with infrared reflectance spectroscopy. As sketched the sample consists of a poly-crystalline silicon layer (which may serve as the gate electrode in a transistor) separated by a thin insulating SiO2 layer from the silicon substrate.
|
 |
The obtained thicknesses are 14 nm for the SiO2 layer and 238 nm for the poly-crystalline silicon film.
